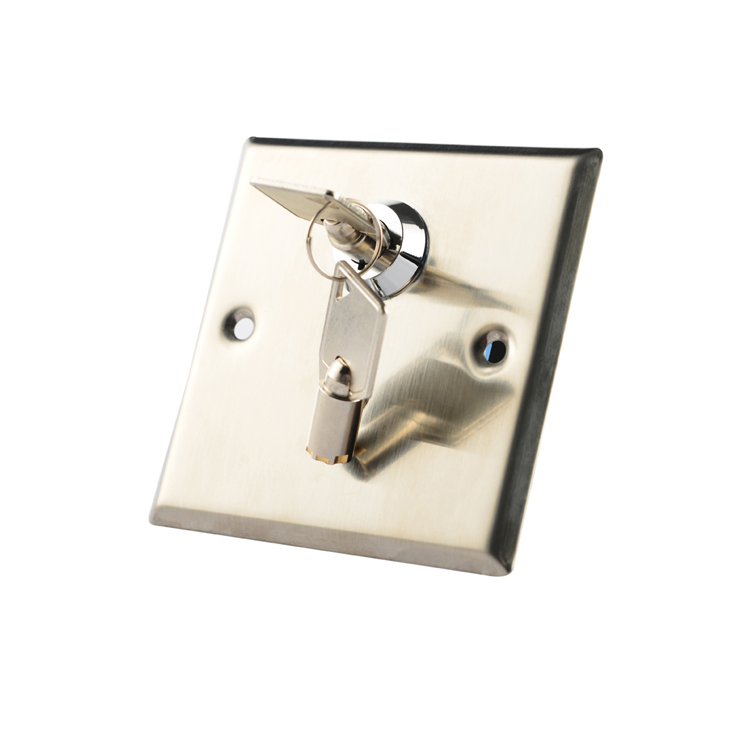

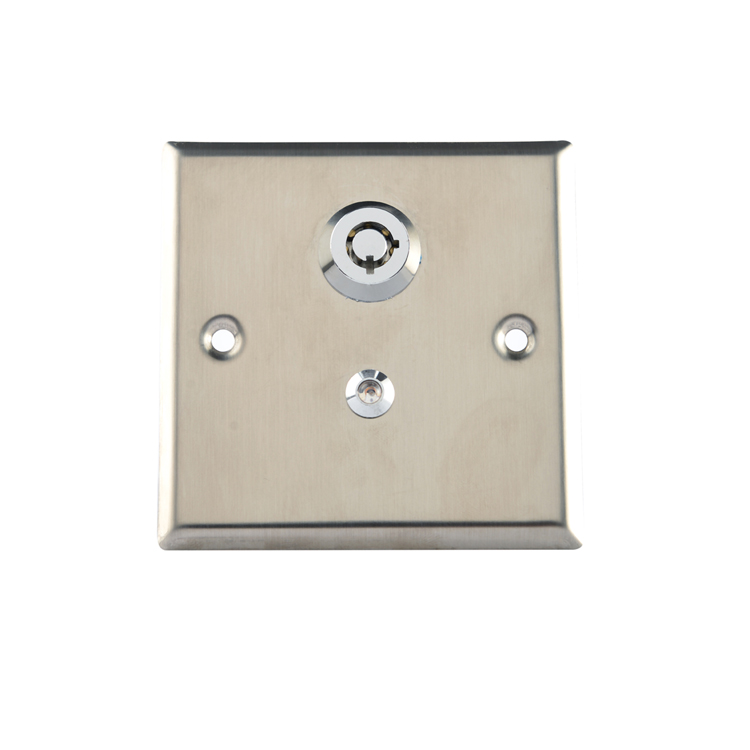

Door Release Button TD-B15

Specification:

Withstand voltage:250V
Load current:1.25A
Case Material:Stainless steel
Contact Mode: NC/NO output
Reset mode: Key reset
Working temperature:-20~60℃
Weight: 170g
Dimension: 86*86*32mm
Button Dimension: Ф23*2mm

Features:

1.stainless steel shell, safe and durable.
2.Looks simple, comfortable and beautiful.
3.Undergoing 50,000 times continuous clicking test, very durable.
4.Good to touch, easy to operate and use.
5.Activates electric strike, magnetic lock or other elctric lock via access control keypad.
6.Works with most electronics access control keypads, door phones with access control keypads.
7.Flush mounting.

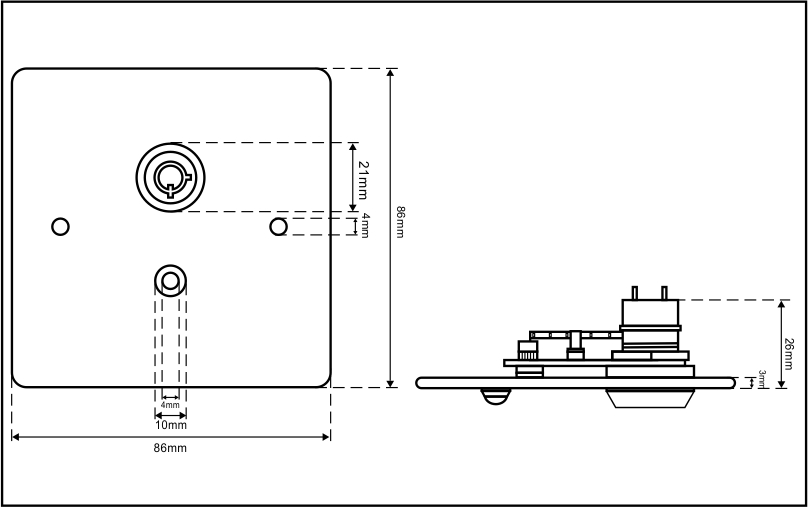

Dimensions:
