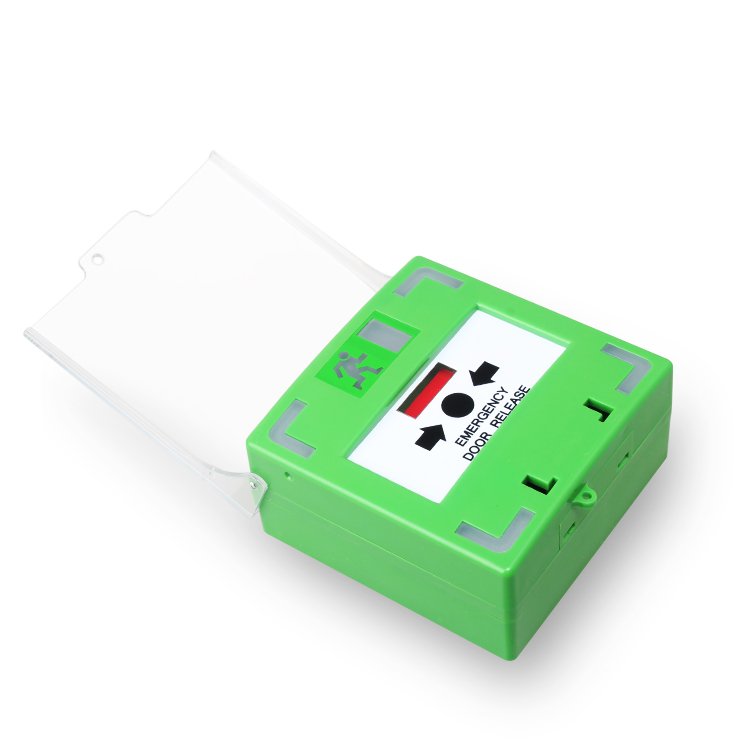

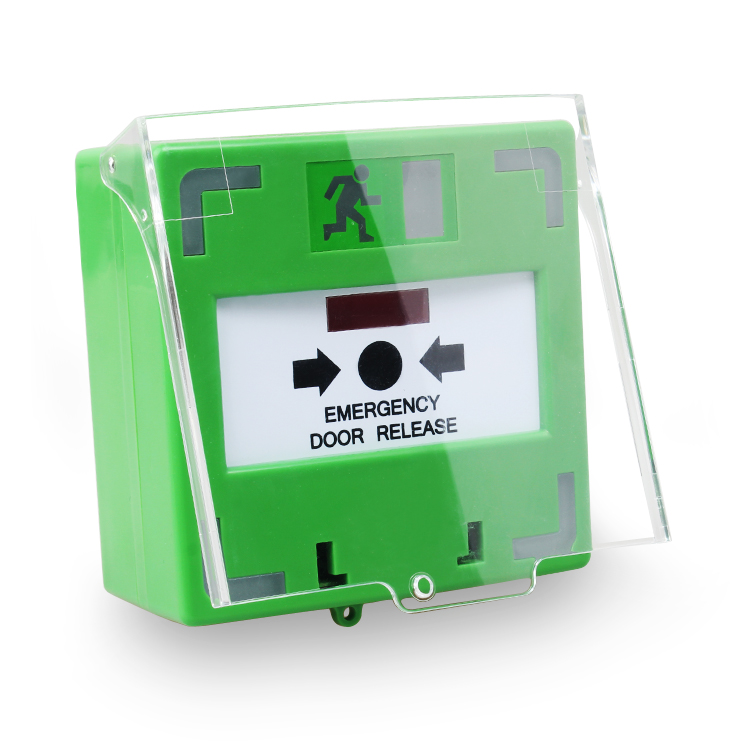

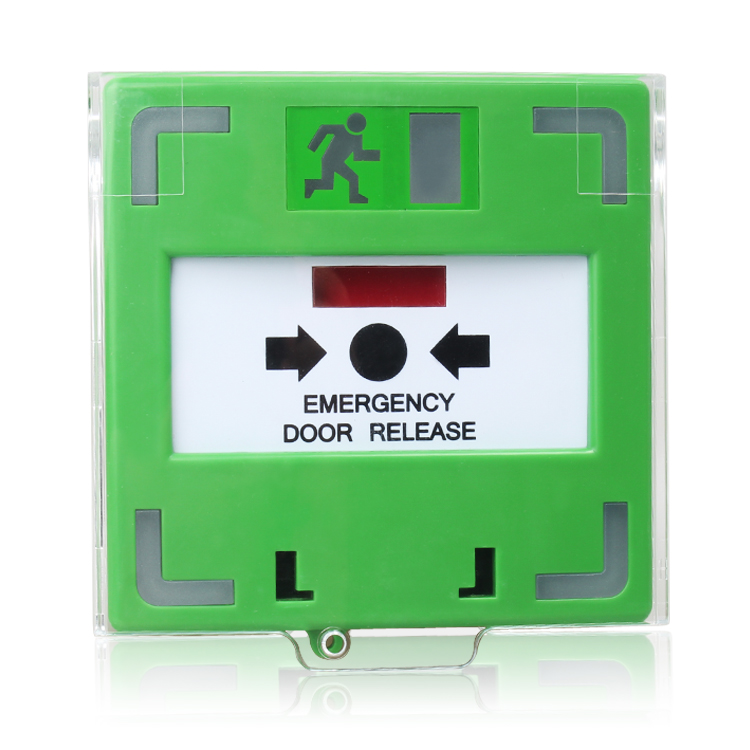

Emergency Door Release TD-CP08F

Specifications:

With water-proof cover

Available in Red/Green/Yellow/Blue/White

Power supply: DC12V~24V

Current:DC12V/18mA(Stand by)/75mA(Operation)

DC24V/11mA(Stand by)/41mA(Operation)

Buzzer: Set as silent,interval wailing or continuous wailing

Indicator: Dual color(red and green)

Red indicator to set blinking, off or on

Output: NO/NC&COM output(Max load of 125V/3A)

Dimension: 90mm(L)x93mm(W)x45mm(H)

Material: ABS PC(transparent parts)

Type: key reset

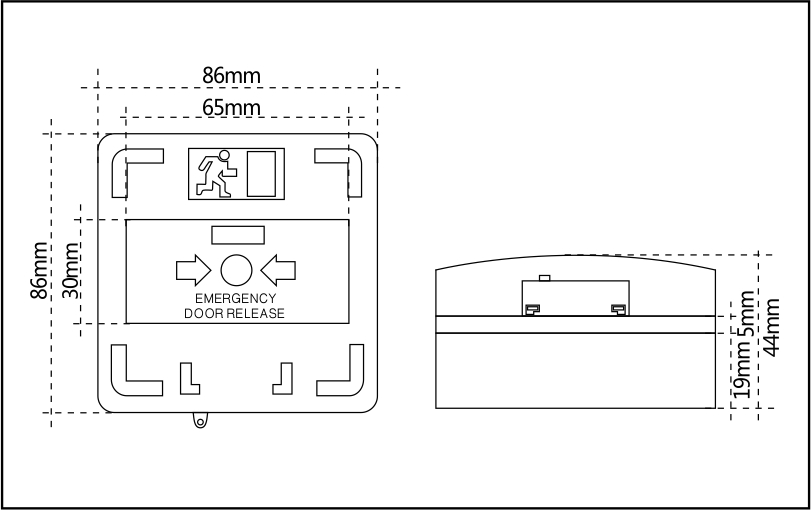

Dimensions:
