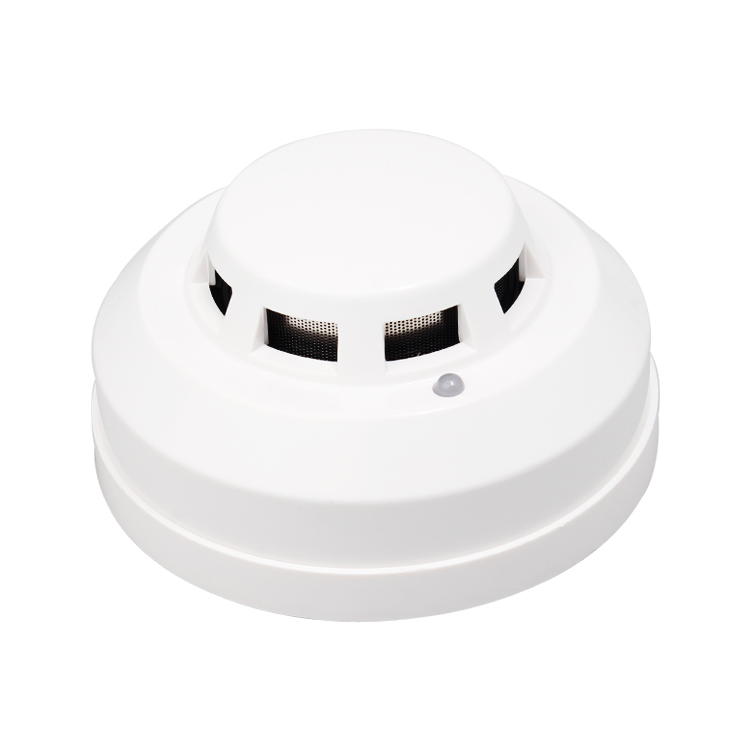

Conventional Smoke Detector TD-SD601

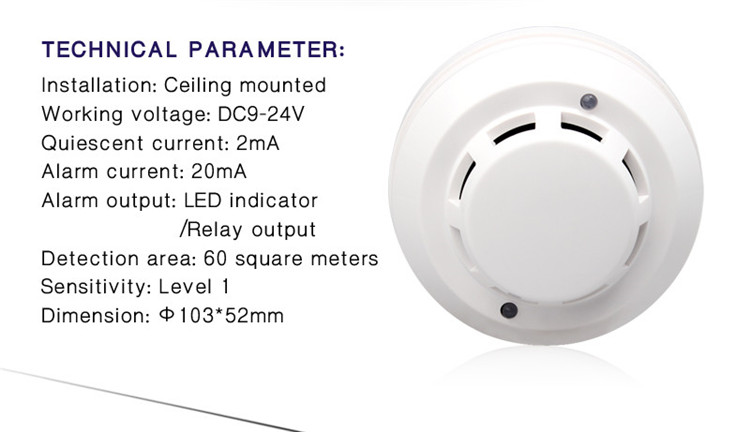

Specification:

Installation: Ceiling mounted
Working voltage: DC9-24V
Quiescent current: ≦ 2mA
Alarm current: 20mA
Alarm output: LED indicator/Relay output
Detection area: 60 square meters
Sensitivity: Level 1

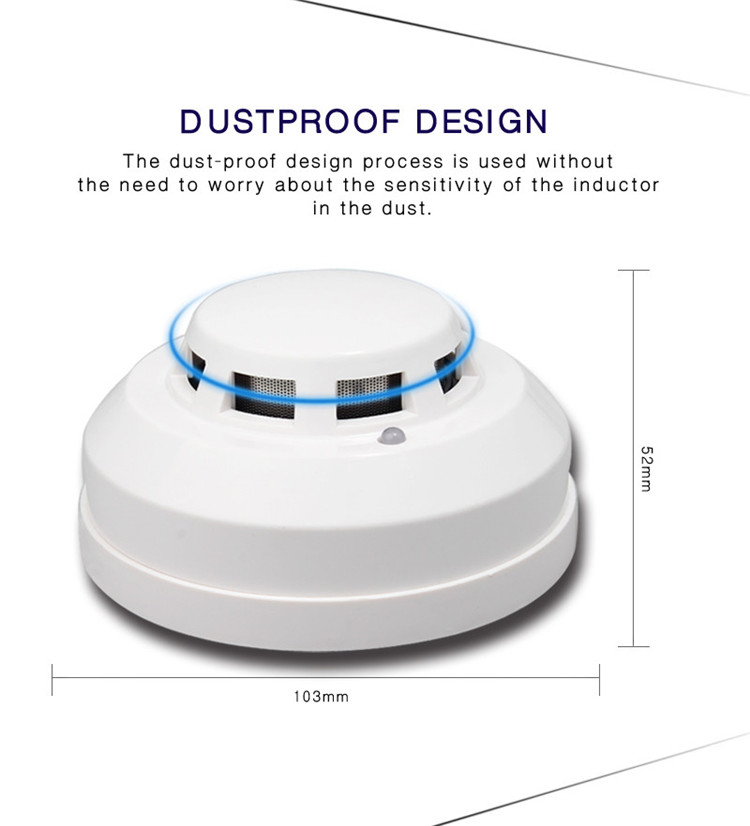

Dimension: Φ104*51mm

Features:

Designed to comply with EN-54 standards
High Anti-RFI with inside stainless housing

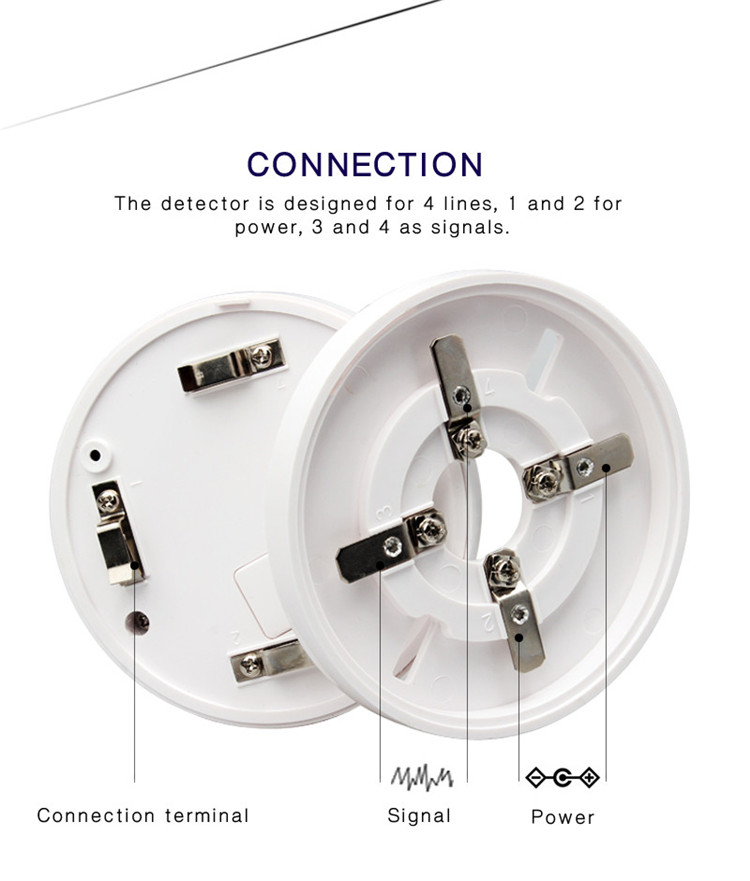

Two or four wire models optional
Sleek, low-profile housing design
Low power consumption, high precision and stability
Durable Sensor Head; Excellent smoke access
Power-off reset for 2 wire connection
Auto-reset or power-off reset optional for 4 wire connection
Easy Installation and maintenance
24V mode available
Extended Warranty

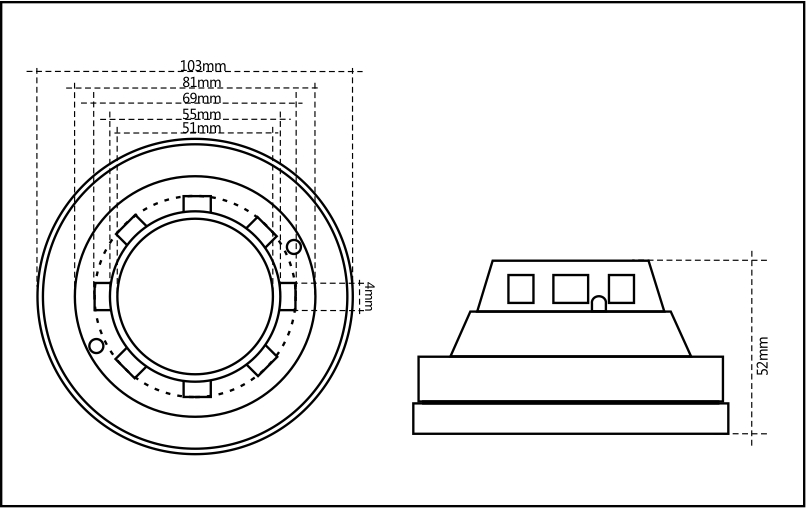

Dimensions:

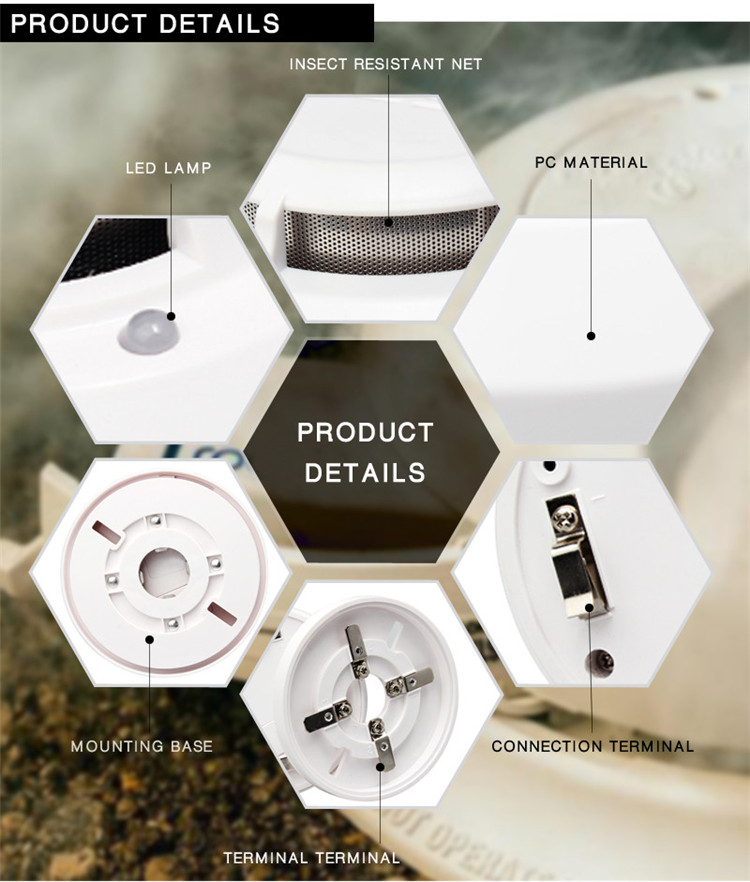

Product Details:
