PIR Motion Sensor TD-R35

1. TD-R35
2. SMT adopted, anti-RFI & anti-EMI,pulse count optional
3. Low-consumption design, which can makes it work for long time.
4. resist the white light and make no false alarm

Specification:

Operating voltage: DC9-24V
Quiescent current: ≦ 18mA
Detecting distance:Φ6m,(celling installation at
3.6m)Detecting angle:360°
anti RFI,Anti white light interference
Alarm output: NC/NO optional
SMT adopted,Flame retardant ABS shell
Installation: Ceiling mounted
Dimension:Φ108*35mm

Features:

fireproof ABS housing
LED ON/OFF optional
automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
pulse count optional
alarm output N.C./ N.O. optional

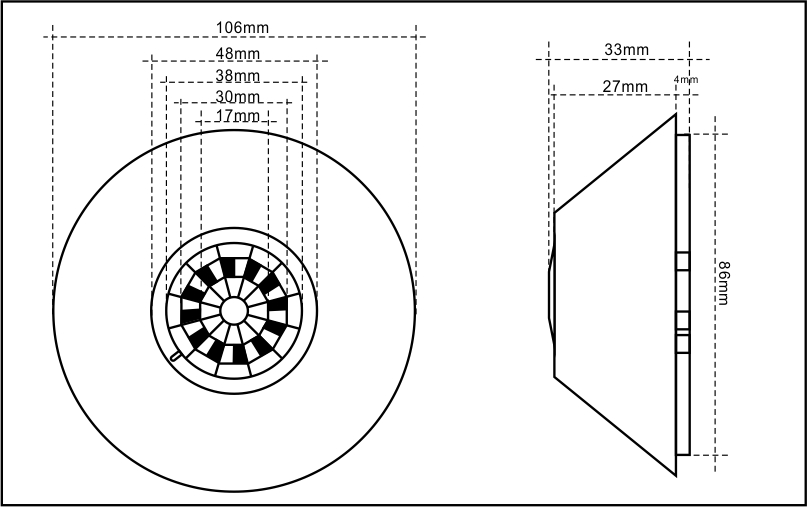

Dimensions:
