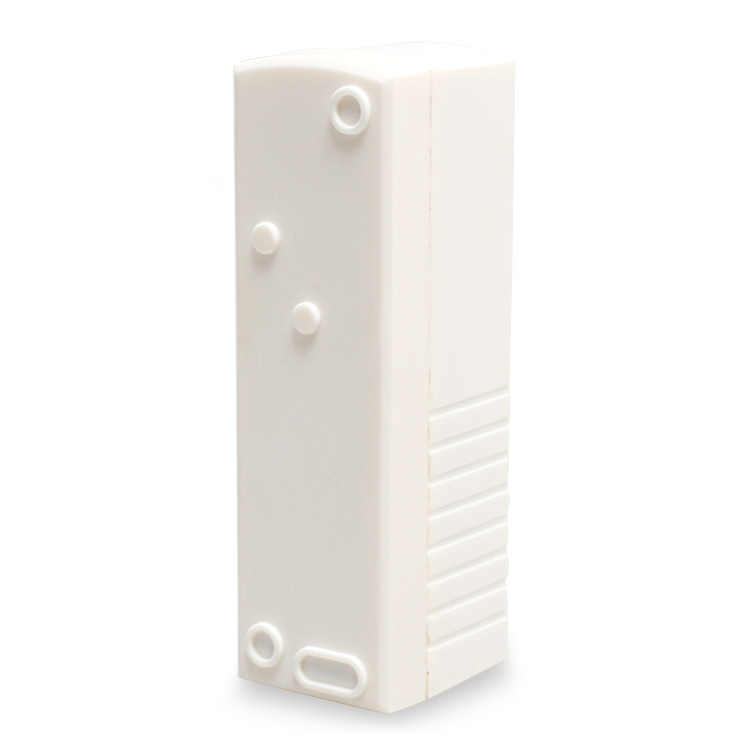

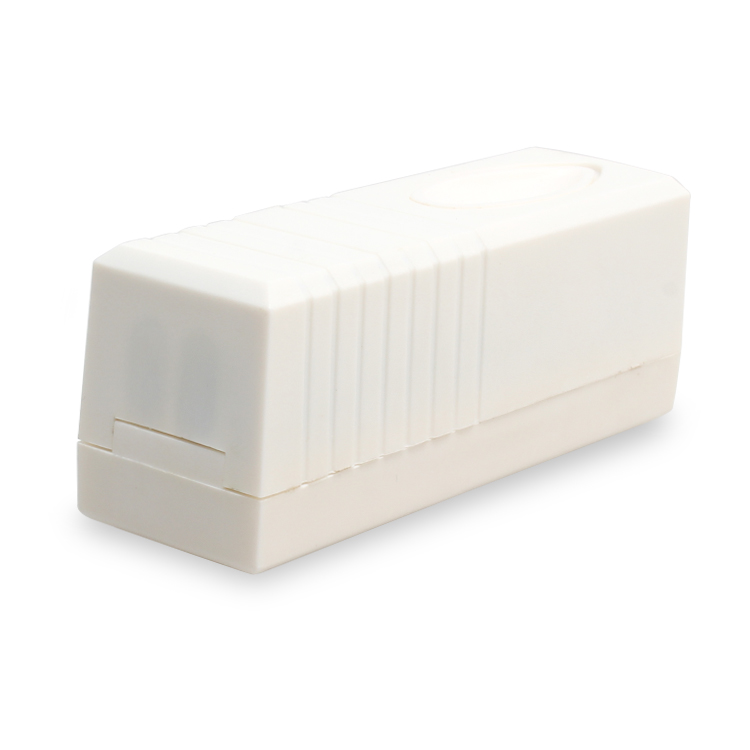

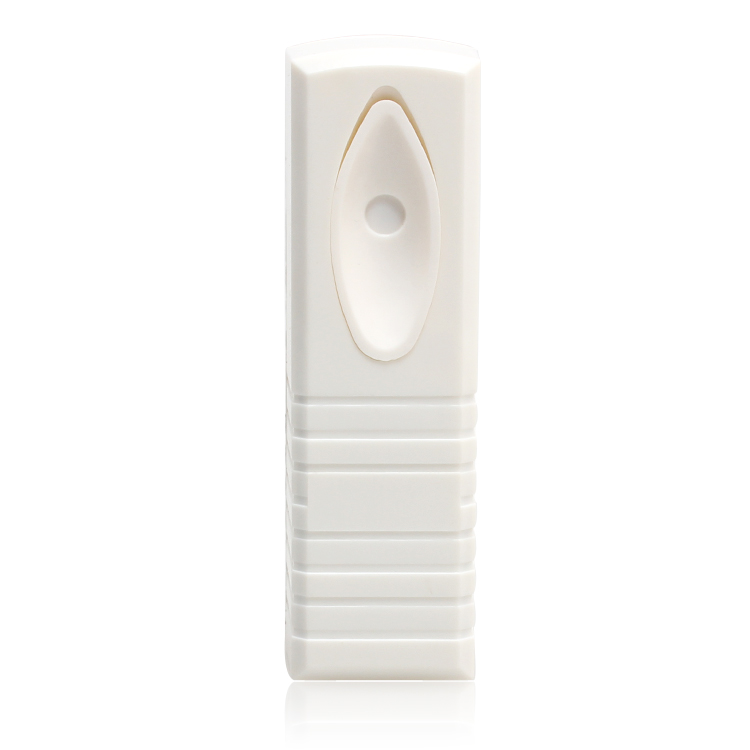

Vibration Sensor TD-VD03

1. TD-VD03
2. Mounting Fashion Flexible
3. Low-consumption design, which can makes it work for long time.

EMAIL

Specification:

Operating Voltage: 9-16VDC
Current: 15mA
Contact of Alarm: NC, 12VDC, 100mA max
Contact of Tamper: NC, 12VDC, 100mA max
Time to Alarm: 2.0s
Time to Warm-up: 1 minute
Operating Temperature: -15ºC ~ 50ºC
Storage Temperature: -20ºC ~ 55ºC
Size: 26×85×24mm

Features:

Photoelectricity Vibratory Sensor
Sensitivity is Adjustable
Microprocessor Design Improves False Alarm Immunity
Power Consumption is Low
Mounting Fashion is Flexible
Tamper Immunity
Alarm Indication
Compliant to Any Environment
Compact and Elegant Shape
